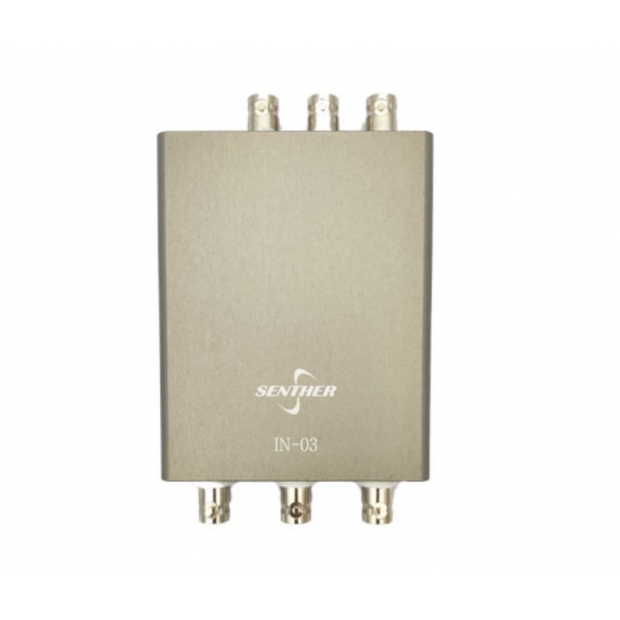

IEPE電源供應器(3 chanel)

Electrical
Power supply….................................................................. 5 Vdc
Current consumption…......................................................<100 mA
Excitation current ±10%, 25°C........................................... 4 mA
Output resistance (AC).......................................................<100 ohms
(DC).................................................................................. 200K ohms
Output voltage................................................................... ±5V
Output bias………………………………….………………….0V
Environmental
Temperature range............................................................. 0 to 70°C
Shock limit.......................................................................... Up to 50g
Sealing ........................................................... .................. Epoxy seal
Physical
Weight................................................................................ 210grams
Input connector.................................................................. BNC(Male)
Output connector............................................................... BNC(Male)
Accessories
Plug in DC power supply
Check LED
Green light: Sensor is working
Red light: Sensor internal short, error
