多功能訊號輯錄系統

Electrical
Power supply….................................................................. 5 Vdc
Current consumption…......................................................<100 mA
Excitation current ±10%, 25°C........................................... 4 mA
Output resistance (AC).......................................................<100 ohms
(DC).................................................................................. 200K ohms
Output voltage................................................................... ±5V
Output bias………………………………….………………….0V
Environmental
Temperature range............................................................. 0 to 70°C
Shock limit.......................................................................... Up to 50g
Sealing ........................................................... .................. Epoxy seal
Physical
Weight................................................................................ 210grams
Input connector.................................................................. BNC(Male)
Output connector............................................................... BNC(Male)
Accessories
Plug in DC power supply
Check LED
Green light: Sensor is working
Red light: Sensor internal short, error

3 Channels charge amplifier & power supply

Electrical
Power requirement: ………………................................... 24~36 VDC
Output resistance............................................................. <100 ohms
Output Max. 25°C............................................................. ±10V
Gain option(mV/pC).…………………………………………1/10/100
Environmental
Temperature range........................................................... 0 to 70°C
Shock limit........................................................................ Up to 50g
Sealing ............................................................................ Epoxy seal
Physical
Weight.............................................................................. 210grams
Input connector................................................................. BNC(Male)
Output connector.............................................................. BNC(Male)

Accessories
Plug in DC power supply
Check LED
Green light: Sensor is working
Red light: Sensor internal short, error

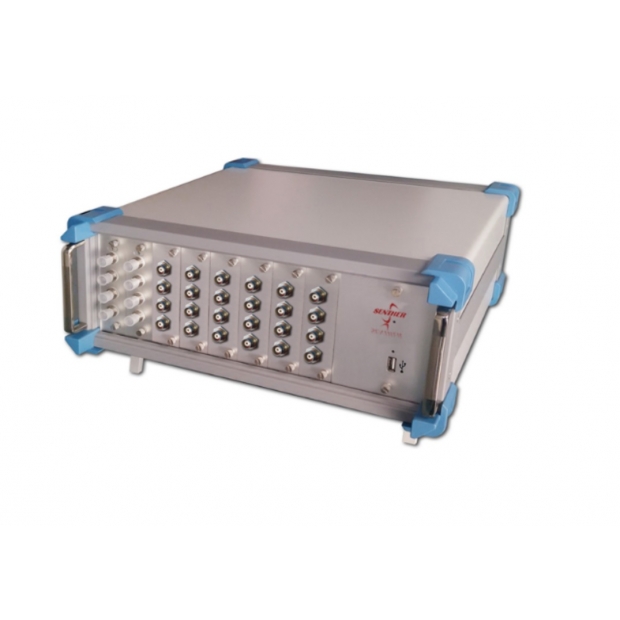

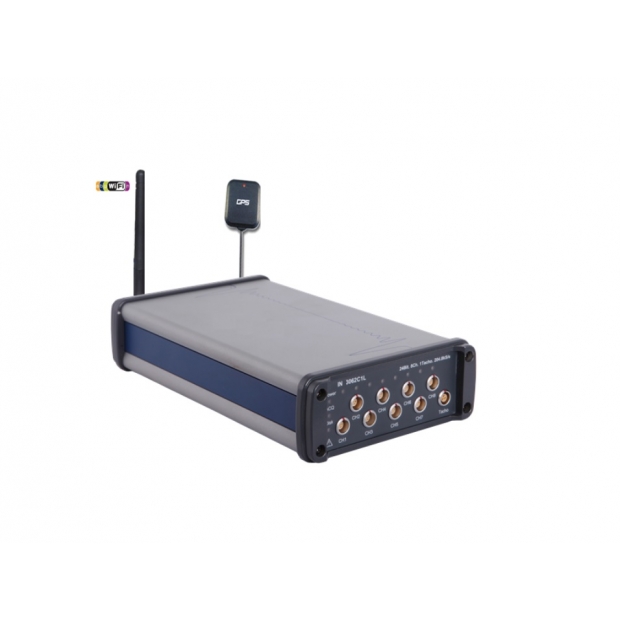

通 道 數：32通道
輸入範圍：±5V
頻率範圍：0.1Hz~20kHz
增益：1、10、100
激勵電壓：24VDC
輸出電壓：±10V
噪音比：>50dB
噪 音：≤5mVrms
非線性誤差：<0.5%
工作溫度：-10℃~50℃
工作濕度：≤85%RH
供電電壓：100V~240V(AC)
儀器功耗：40W
尺寸重量：寬365mm×高170mm×深365mm

特點/應用：

分佈式 , 支持LAN或WIFI多台級聯 .

具AD、DA和Tacho通道• USB介面 , 可直接接上網設備或儲存設備.

WIFI具有AP和STATION雙工作模式• 數據雙存儲，內建32GB儲存卡.

支持10MHz外時鐘輸入• 支持外觸發採樣• 支持雲智慧測試 .

實現“互聯網+”測試• 支持TEDS智能傳感器接入 .

高性能，FPGA/DSP/ARM 三處理器協同工作 .

支持脫機離線自動工作模式 . 支持IEEE802.3at/af標準(PoE)供電 .

支持IEEE1588同步和GPS/北斗同步 . 內建電池，無外供電可持續工作2小時 .

寬採樣頻率範圍，0.4~216kHz任意採樣頻率 . 25MHz採樣率的轉速通道，支持扭振測量 .

RS232、RS485、CAN，讀入靜態信號 .

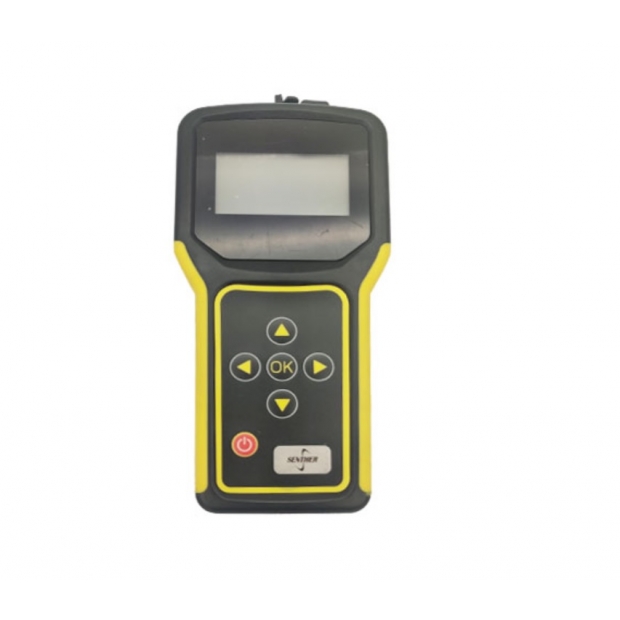

Signal Type ............................. Acceleration
Channel ...................................1
Signal Interface........................IEPE(2.5mA)/AC Voltage
Input Range ........................... ±6V
Measure Type......................... Acceleration, Velocity, Displacement
Temperature Range................ -40℃ ~ +240℃
Temperature Accuracy............. ±3℃

Environmental
Battery ....................................4 NiMH battery pack
Volume ...................................1250mAh
Voltage Typical........................4.8V（5.4V MAX）
Charge ...................................Rechargeable
Operation Temperature........... -10℃ ~ +50℃
Storage Temperature.............. -30℃ ~ +80℃
Humidity ................................. ≤85%

Performance
Measure Range...................... ±50g
Characteristic Value................ RMS, Peak-Peak, Peak
Dynamic Range...................... >80 dB Typical
Frequency Upper Limit........... 10000 Hz
Frequency Lower Limit........... 10 Hz
High Pass Filter ......................10Hz / 600Hz
Low Pass Filter .......................1000Hz / 10000Hz
Sampling Length .....................25600 Point
Sampling Rate Max. ................64kSPS
Sampling Accuracy ..................24bits

Device Specification
Size .........................................169x81x31mm
Weight(Sensor & CableIncluded)...360g

Screen 128x64, LCD screen, 2.1 inch
Operation Interface Embedded Operating System
