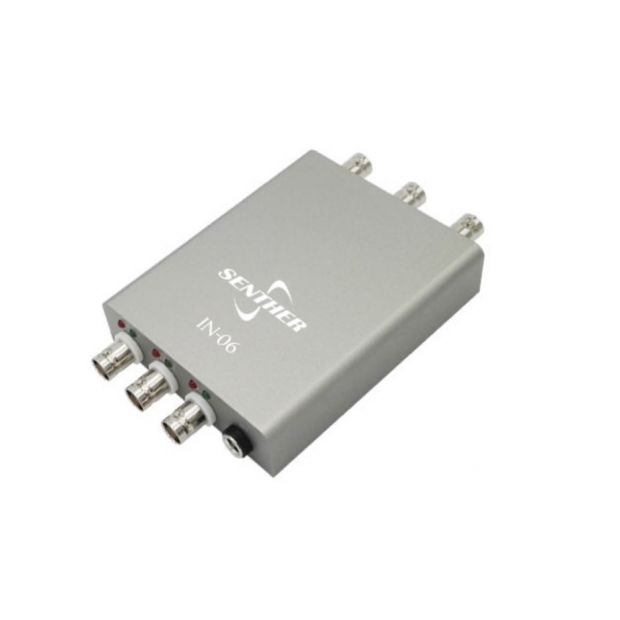

電荷信號放大器(3 chanel)

3 Channels charge amplifier & power supply

Electrical
Power requirement: ………………................................... 24~36 VDC
Output resistance............................................................. <100 ohms
Output Max. 25°C............................................................. ±10V
Gain option(mV/pC).…………………………………………1/10/100
Environmental
Temperature range........................................................... 0 to 70°C
Shock limit........................................................................ Up to 50g
Sealing ............................................................................ Epoxy seal
Physical
Weight.............................................................................. 210grams
Input connector................................................................. BNC(Male)
Output connector.............................................................. BNC(Male)

Accessories
Plug in DC power supply
Check LED
Green light: Sensor is working
Red light: Sensor internal short, error
