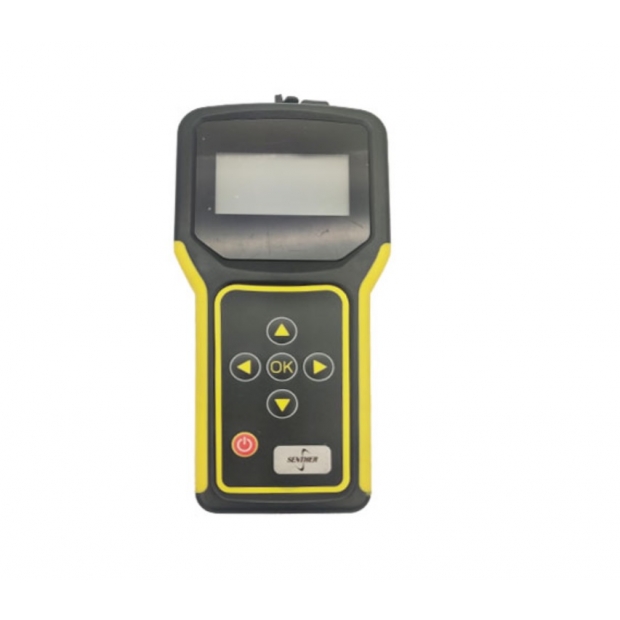

手持式震動分析儀

Signal Type ............................. Acceleration
Channel ...................................1
Signal Interface........................IEPE(2.5mA)/AC Voltage
Input Range ........................... ±6V
Measure Type......................... Acceleration, Velocity, Displacement
Temperature Range................ -40℃ ~ +240℃
Temperature Accuracy............. ±3℃

Environmental
Battery ....................................4 NiMH battery pack
Volume ...................................1250mAh
Voltage Typical........................4.8V（5.4V MAX）
Charge ...................................Rechargeable
Operation Temperature........... -10℃ ~ +50℃
Storage Temperature.............. -30℃ ~ +80℃
Humidity ................................. ≤85%

Performance
Measure Range...................... ±50g
Characteristic Value................ RMS, Peak-Peak, Peak
Dynamic Range...................... >80 dB Typical
Frequency Upper Limit........... 10000 Hz
Frequency Lower Limit........... 10 Hz
High Pass Filter ......................10Hz / 600Hz
Low Pass Filter .......................1000Hz / 10000Hz
Sampling Length .....................25600 Point
Sampling Rate Max. ................64kSPS
Sampling Accuracy ..................24bits

Device Specification
Size .........................................169x81x31mm
Weight(Sensor & CableIncluded)...360g

Screen 128x64, LCD screen, 2.1 inch
Operation Interface Embedded Operating System
